(*cable for Biomech Studio Software PC version + bag & WIFI Avaible for APP Biomech ANDROID / IOS)

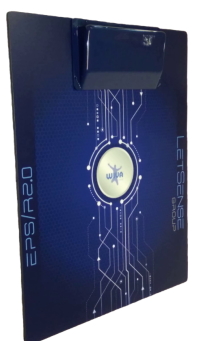

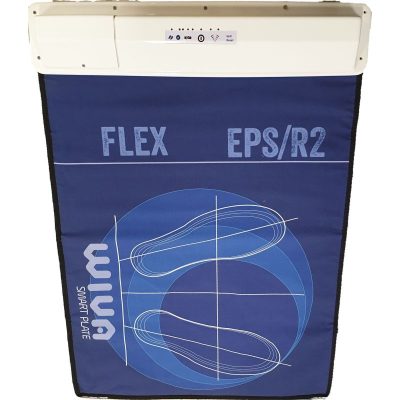

The new EPSR2 smart resistive baropodometric platform, with WIFI connection and powered by BATTERY .
Is the last version of platforms for baropodometric and postural analysis, orthostatic and dynamics of the individual
foot. It can also be used for postural analysis; it is easy to transport by the supplied bag.
The results of the analysis can be viewed in BIOMECH® STUDIO Program for PC (Windows), the professional software
that combines the products designed, developed, and produced by Letsense. It can work with Pc Software Biomech
Studio for PC in the same way as standard EPSR1 Platform both in Static and Dynamic.
The new SMART electronics also allows a frequency rate of 100 to 300 Hz! It can also be used with standard Biomech
Studio by usb type C cable. The smart thing is that it also can interfaces easily through the new BIOMECH App
(available for IOS & Android tablets) and allows rapid test execution both in STATIC and DYNAMIC.
Once the evaluation is completed, it is possible to have a quick summary of the main data directly on the tablet, while
for a more detailed evaluation it is possible to access the protected area of the
Biomech WEB LAB CLOUD to compare graphs, analyzes and print the relative
reports for patients.
Information from the STATIC analysis:
You can compare different analysis of the same patient between different
patients.
• Load distribution (2D and 3D)
• Maximum and average pressures
• COP position
• COP position of the single foot
• Static angles and feet position
• Type of support
Information from the DYNAMIC analysis:
• Load distribution (2D and 3D)
• Maximum and average pressures
• contact time
• Integral pressure / time
• Movement of the point of Max pressure
• Type of support
• Load the distribution in the individual areas
• Development of the load in the different areas
• Film and Detection of the walking cycle phase
• Synchronized acquisition with
film from the webcam
• Statistics
• 3D viewing
TECHNICAL FEATURES :
Sensor type : resistive
Sensors Number: 2304
Pression Range: 10-500 kpa
Frequency : 50 Hz – 300Hz
Connection USB on PC
Connection (IOS / ANDROID) WIFI
Sensor size : 8x 8 mm
Platform Size 50×70
